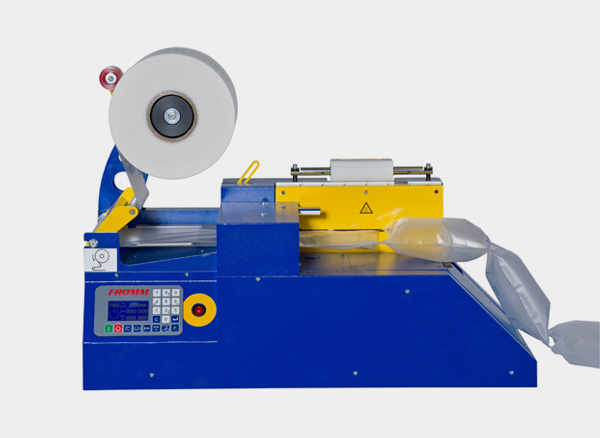

Air Pad Machine

AP 502 is fully automated and computerised Airpad machines which produce a sheet form of Air pillows of 6 different sizes from the same roll of film. These Air pillows are

Air Pad Machine

AP 100 The new and compact Airpad AP100 table top air pillow machine of Fromm is user friendly and ideal for decentralized packing stations. The various pad sizes allow to produce the most suitable airpads for superior protection... of products
Features of the machine:
User friendly
-Easy to operate
-Easy roll change
-Short start-up time
Ergonomic, integration with
-mobile bin
-Stand alone hopper
Highly reliable and low maintenance Read more

MODEL	BRAND & ORIGIN	FILM WIDTH	NO. OF PROGRAMS
AP 100	FROMM, Switzerland	200mm, 400mm	10 – 16 meters / min

AP 150 The new rapid Fromm’s compact bubble on demand system Airpad AP150 generates with high Speed 18 meters of film per minute. In addition the machine is very user friendly in execution and has good ergonomics with simple and reliable winder.

Features of the machine:
– Very user friendly
– Easy to connect
– Automatic starts and stops
– Fast generation of “bubble film” material

Air Pad Machine - AP 150

MODEL	BRAND & ORIGIN	FILM WIDTH	NO. OF PROGRAMS
AP 150	FROMM, Switzerland	400mm	18 meters / min

AP 250 The new table top machine in combination with a wide variety of standard or customised accessories offers customers an extensive range of applications: Stand alone systems or integrated in multi-user workstations. The large number of programs allows to produce the most suitable Airpads for your product. Endless production or pre-programmed amount of pads in different film thicknesses and film qualities open a wide field of applications.

Features of the machine:
– Long life design and rugged construction
– Minimum of maintenance required
– Easy Teflon changes
– No compressor required
– Easy to load film
– Easy to operate
– Adjustable air volume
– Programmable lengths of air-chains
– Programmable lengths of airpads

Air Pad Machine - AP 250

MODEL	BRAND & ORIGIN	PORTABLE	NO. OF PROGRAMS
AP 250	FROMM, Switzerland	No	18

AP 502 is fully automated and computerised Airpad machines which produce a sheet form of Air pillows of 6 different sizes from the same roll of film. These Air pillows are used for void filling in boxes to protect goods and because they are produced in a sheet format, are capable of being wrapped around larger items for complete protection during transit. These machines are also programmed to create 45different variations of the 6 sizes of Air Pillows which will allow our customers the freedom to create a pillow specifically geared to the product that requires transit protection at a touch of a button.

Features of the machine:
– Industrial, heavy-duty design
– 45 variations of cushions with one film
– Pre-set programs, easily selectable on screen
– Wide range of films from 25 to 65 microns
– Wide range of materials: PE, PE-PT, PE-PA, laminated, coextruded
– AP 502 with integrated winder.

Air Pad Machine - AP 502

MODEL	BRAND & ORIGIN	PORTABLE	NO. OF PROGRAMS
AP 502	FROMM, Switzerland	Yes	45

COMMON ACCESSORIES USED FOR AIRPAD FILMS

Air Pad Film

Shrink Wrap Machine

Shrink Fast Gun 998 UL – The basic principle of shrink wrapping is quite simple. It involves covering the item to be wrapped with low-density polyethylene film and then,

Shrink Wrap Machine

Shrink Fast Gun 998 UL – The basic principle of shrink wrapping is quite simple. It involves covering the item to be wrapped with low-density polyethylene film and then, on application of heat from the 998 Heat gun, the film shrinks and tightens to protect the product. With its superior engineering the 998 Heat gun has been designed with a wide range of film types, thicknesses and applications in mind. The advanced aerodynamics of the 998 Heat gun give a wide and even disbursement of heat which means faster shrink rates and a constant transfer of heat, which minimises hot spots. Because the 998 Heat gun shrinks consistently and uniformly; thinner less expensive film can be used. The 998 Heat gun is completely portable and handheld. With no electrical connections, and weighing only 1kg, it can easily be carried to any location, any job, inside or out..!

MODEL	BRAND & ORIGIN	POWERED
998 UL	Shrink Fast, USA	Propane Gas

Shrink Tunnel is a heated tunnel with a conveyor system running through the tunnel. The heat settings and conveyor speed of the shrink tunnel can be adjusted to properly heat a shrink film.

The heat applied to the shrink film enables the film to tightly conform to the product within the film. Shrink tunnels are used in a variety of industries for retail packaging, food packaging, and industrial packaging. Shrink tunnels are a great option to help increase production while offering a consistent shrink rate to all products

Shrink Wrap Machine

MODEL	BRAND & ORIGIN	TUNNEL SIZE	MAX. PACKAGING SIZE	PACKING SPEED
SM 4525	China	1000x450x250mm	700x400x200mm	2000 to 3000 pcs / Hour

L Bar Shrink Wrap Sealers are great for all types of shrink film. They are an ideal machine for centrefold shrink wrap. Many high output operations use centrefold shrink wrap for wrapping a variety of products across multiple industries. The L Bar sealer is designed to have two sealing sides to efficiently seal and cut centrefold shrink wrap in one motion. L Bar shrink wrap sealers also work with shrink bags and shrink tubing, but were specifically designed for centrefold shrink wrap. The L Bar sealers with discharge conveyor feature: Magnetic hold, discharge conveyor, Micro knife sealing blade, film rack, Pinwheel hole punch, durable steel legs, locking casters, adjustable heat control, and adjustable seal timer.

L Bar Shrink Wrap Sealers

MODEL	BRAND & ORIGIN	TUNNEL SIZE	MAX. PACKAGING SIZE	PACKING SPEED
FL 7555T	China	750x550mm	700x500x200	800 to 1000 pcs / Hour

Stretch Wrapping Machine

Pallet Wrapping Machine – These wrapping machines are offered with multiple wrapping programs. The machines are user friendly and can be used in every

Stretch Wrapping Machine

Pallet Wrapping Machine - These wrapping machines are offered with multiple wrapping programs. The machines are user friendly and can be used in every situation. Top / bottom wraps / speed can be changed by operator. The load to be wrapped sits on a turntable which spins the load relative to the film roll,which is housed in a carriage which can move up and down a fixed "mast". Stretch is achieved by rotating the load at a faster rate than the film is fed. Stretch pallet wrapper is widely used in chemical industry electronic industry building materials home appliances paper making foodstuff & drink etc.

MODEL	BRAND & ORIGIN	TURNTABLE (DIAMETER)	PALLET HEIGHT	LOADING CAPACITY
FS 130		1500mm	2100mm	1250 kg
FS 130		1650mm	2100mm	1350 kg
FS 360 (C2)	FROMM, Italy	1650mm	2500mm	2000 kg
FS 360 (C1)		1500mm	2500mm	1500 kg
FS 360 (C1)		1650mm	2100mm	2000 kg

COMMON ACCESSORIES USED FOR WRAPPING MACHINE

Strapping Machines

Strapping Machine (Automatic & Semi Automatic) for Polypropylene Strapping – there are a couple of Strapping Machines, Binding Machines and also Table

Strapping Machines

Strapping Machine (Automatic & Semi Automatic) for Polypropylene Strapping – there are a couple of Strapping Machines, Binding Machines and also Table Strapping Machines.These are devices that quickly and effectively connects the strap, creating a fixed cycle. These strapping machines are... particularly suitable for strapping of newspapers, books, profiles, boxes, products, printed materials, cartons, etc. Strapping machines are divided according to the level of automation to the semi-automatic strapping machines, usually without insertion frame and to automatic strapping machines with inserting or feeding frame Semi-Auto Strapping Machines These strapping machines are the most economical solution for manual operations. For low to medium volume strapping applications, our semi-auto strapping machine is definitely your best choice.Read more

MODEL	BRAND & ORIGIN	STRAP WIDTH	TENSION RANGE	NET WEIGHT
TP 201	Transpak, Taiwan	9mm to 15mm	15 kg to 45 kg	85 kg
TP 502	Transpak, Taiwan	9mm to 15mm	8 kg to 45 kg	70 kg

Automatic Strapping Machines – A comprehensive solution can be provided in this category. We offer high-performance automatic strapping machines from economy machine up to world-class innovative high-speed machines for narrow straps.

Automatic Strapping Machines

MODEL	BRAND & ORIGIN	STRAP WIDTH	TENSION RANGE	SPEED / MIN	NET WEIGHT
TP 702-59	Transpak, Taiwan	5mm or 9mm	1 kg to 32kg	65 Strap	158 kg
TP 6000-1	Transpak, Taiwan	12mm or 15mm	10 kg to 70 kg	27 Strap	220 kg

Pallet Strapping Machines – To provide stability for palletized goods during transportation and storage, TRANSPAK offers pallet strapping machines for both horizontal and vertical strapping with the best price to performance ratio on the market.

Pallet Strapping Machines

MODEL	BRAND & ORIGIN	STRAP WIDTH	TENSION RANGE	NET WEIGHT
TP 502MH	Transpak, Taiwan	9mm to 15mm	8 kg to 70 kg	292 kg
TP 502MV	Transpak, Taiwan	9mm to 15mm	8 kg to 70 kg	93 kg

Pneumatic Strapping Tools

Pneumatic Sealless Steel Strapping Tools – Areas of application for pneumatic, sealless strapping tools are identical to those for manual tools. The same also applies

Pneumatic Strapping Tools

Pneumatic Sealless Steel Strapping Tools – Areas of application for pneumatic, sealless strapping tools are identical to those for manual tools. The same also applies to the characteristics of the sealless notched joint. The essential advantage is in faster strapping,uniformly ideal tensioned straps plus the efficient mode of working. Time savings are considerable, particularly when long band take-ups are required, for instance with compressible packed goods and extremely large crates and pallets. Pneumatically powered tools combined with semi-automatic strap feed systems increase productivity even further.

MODEL	BRAND & ORIGIN	STRAP DIMENSION	STRAP QUALITY
A390 / A391	FROMM, Italy	12 or 16 or 19mm	Regular Duty & High Tensile
A380	FROMM, Italy	12 or 16 or 19 or 25mm	Regular Duty & High Tensile
A383	FROMM, Italy	19 or 25 or 32mm	Regular Duty & High Tensile
A385	FROMM, Italy	12 or 16 or 19mm	Regular Duty & High Tensile

Pneumatic Steel Strapping Tools with a Seal Joint – the strapping applications of the pneumatically powered steel strapping tools with a seal joint are identical to those of the manual tools.
These tools are especially suitable for round, curved and irregular shaped goods with a small surface. Separate lap-over metal seals are used for the joints; these form a single or double notch joint, guaranteeing a correct seal everytime.

Pneumatic Steel Strapping Tools

MODEL	BRAND & ORIGIN	STRAP DIMENSION	STRAP QUALITY
A452 – Tensioner	FROMM, Italy	19 to 32mm	Regular Duty & High Tensile
A461 – Sealer	FROMM, Italy	32mm	Regular Duty & High Tensile
A480 – Combination	FROMM, Italy	19mm	Regular Duty & High Tensile
A482 – Combination	FROMM, Italy	19mm	Regular Duty & High Tensile
A483 – Combination	FROMM, Italy	25mm or 32mm	Regular Duty & High Tensile

Pneumatic Plastic Strapping Tools are suitable for use in combination with semi-automatic strap feeding stations or in cases where the strapping operation is stationary. The well proven and robust design of the tools ensure a reliable operation in tough conditions, across all industries.
The tools are available for use with Polyester – and Polypropylene-strapping with widths from 10 mm (3/8”) up to 32 mm (1¼”) and thicknesses up to 1.53 mm (.060”).

Pneumatic Plastic Strapping Tools

MODEL	BRAND & ORIGIN	STRAP DIMENSION	STRAP QUALITY	SEAL / JOINT TYPE
P357	FROMM, Italy	10 or 12 or 16mm	Polyester / Polypropylene	Friction
P358	FROMM, Italy	16 or 19mm	Polyester	Friction
P359	FROMM, Italy	19 or 25 or 32mm	Polyester	Friction
P380	FROMM, Italy	12 or 16 or 19mm	Polyester / Polypropylene	Friction

Pneumatic Composite Strapping Tensioner – can be used for Composite strapping and Woven polyester strapping belts from 9 to 32mm width. The strong, bi-directional pneumatic motor pulls up to 800 KG / F. The strapping cutter knife is included in the tools, the blade is made for special hardened steel.

Pneumatic Composite Strapping Tensioner

MODEL	BRAND & ORIGIN	STRAP DIMENSION	STRAP QUALITY	SEAL / JOINT TYPE
PNT 32 – Tensioner	OEM SERV, China	9mm to 32mm	Composite / Poly Cord	Wire Buckle

Battery Powered Strapping Tools

Battery Powered Plastic Strapping Tools – are used for higher volume applications. These are combination tools which perform the tensioning, Sealing and Cutting

Battery Powered Plastic Strapping Tools

Battery Powered Plastic Strapping Tools - are used for higher volume applications. These are combination tools which perform the tensioning, Sealing and Cutting functions. These tools for plastic strap use a friction weld. Our range of battery-powered strapping equipment provides the right... tool and strapping for every application. Plastic strapping is available in widths from 9 mm to 32 mm. The new battery strapping tools P328, P329 and P331 are available in two different versions: with one button or two buttons. Tools with one button are designed for automatic use. The new tool models are also equipped with brushless motors. This ensures a longer lifespan of the tools and reduced maintenance costs.Read more

MODEL	BRAND & ORIGIN	STRAP DIMENSION	STRAP QUALITY	SEAL / JOINT TYPE
P318	FROMM, Italy	9mm or 12mm	Polyester	Friction
P328	FROMM, Italy	12mm or 16mm	Polyester	Friction
P329	FROMM, Italy	16mm or 19mm	Polyester	Friction
Dynamic 2100	FROMM, Italy	16mm or 19mm	Polyester	Friction
P331	FROMM, Italy	19mm or 25mm or 32mm	Polyester	Friction

COMMON ACCESSORIES USED FOR Strapping Tools

PET / Polyester Strapping Band

PP / Polypropylene Strapping Band

Manual Strapping Tools

Manual Sealless Steel Strapping Tool – are ideal for flat goods such as pallets, crates, bales and all kinds of packages. The tools are characterized by their reliability,

Manual Strapping Tools

Manual Sealless Steel Strapping Tool are ideal for flat goods such as pallets, crates, bales and all kinds of packages. The tools are characterized by their reliability, strength, ergonomic design principles and service friendliness.The proven sealless joint permits extremely rational working, reducing strapping costs by ca. 10%. The strength of the sealless joint is very uniform and normally higher than that of joins with seals.

MODEL	BRAND & ORIGIN	STRAP DIMENSION	STRAP QUALITY
A333	FROMM, Italy	12.7mm or 16mm or 19mm	Regular Duty
Dynamic 2000	FROMM, Italy	12.7mm or 16mm or 19mm	Regular Duty
A337	FROMM, Italy	19mm	Regular Duty & High Tensile
ZL 90	ZR Tools, Canada	25mm or 32mm	Regular Duty & High Tensile

Manual Combination Plastic Strapping Tool for PET and heavy duty PP strapping using serrated seals to ensure high seal efficiency. The windlass tensioning system provides very high strap tension. With little effort, packages such as boxes, pallets, bales, and crates can be safely strapped. Products are firmly secured during shipping and storage.

Manual Combination Plastic Strapping Tool

MODEL	BRAND & ORIGIN	STRAP DIMENSION	STRAP QUALITY
P403 – Combination	FROMM, Italy	12mm	Polyester / Polyproplyene
P404 – Combination	FROMM, Italy	16mm	Polyester / Polyproplyene
H 44 – Combination	Transpak, Taiwan	12 or 16mm	Polyester / Polyproplyene

Manual Steel Strapping Tools with a Seal Joint – the tools described here are designed for round objects and goods with small surfaces & flat objects with a long band take-up.

The joint requires seal joints and thanks to the ideal lever configuration, these can be produced with minimal force.

Manual Strapping Tools

MODEL	BRAND & ORIGIN	STRAP DIMENSION
A301 – Tensioner	FROMM. Italy	19 to 32mm
A402 – Tensioner	FROMM. Italy	19 to 32mm
MIP 1200 – Tensioner	MIP, USA	12 to 19mm
MIP 1300 – Tensioner	MIP, USA	12 to 19mm
MIP 1400 – Tensioner	MIP, USA	12 to 19mm
MIP 1610 – Tensioner	MIP, USA	12 to 19mm
MIP 1620 – Tensioner	MIP, USA	19 to 32mm
MIP 1860 – Tensioner	MIP, USA	19 to 32mm
H 55 – Tensioner	Transpak, Taiwan	12 to 19mm
A412 – Sealer	FROMM. Italy	32mm
MIP 1100 – Sealer	MIP, USA	12 or 16 or 19mm
MIP 3000 – Sealer	MIP, USA	25 or 32mm
MIP 3100 – Sealer	MIP, USA	25 or 32mm
H 65 – Sealer	Transpak, Taiwan	12 or 16 or 19mm

Manual Plastic Strapping Tools – are less expensive and light weight. There are two types of Manual Strapping tools for Plastic Straps. Windlass tensioner can be used to band flat objects whereas the Pusher Tensioner can be used to band Round or Irregular shaped package.

Windlass Tensioner provides excellent tension and are ideal for light loads. These tools require a separate Sealer tool to crimp the clips.

The Pusher Tensioner able to band types of loads with both Polyester & Polypropylene rolls. When using with Polyester strap use a closed / pusher serrated seals to maximize your system strength

Manual Plastic Strapping Tools

MODEL	BRAND & ORIGIN	STRAP DIMENSION	STRAP QUALITY
H 23 – Tensioner	Transpak, Taiwan	9mm, 12mm, 16mm & 19mm	Polyester / Polypropylene
H 36 – Sealer	Transpak, Taiwan	12mm & 16mm	Polyester
H 35 – Sealer	Transpak, Taiwan	12mm & 16mm	Polypropylene

Manual Composite Strapping Tensioner – lets you tension the composite strap in an easy and effective manner with the self-locking wire. Most of these tensioners are made of steel, which leads to great durability . These tools are low cost and light weight.

Manual Composite Strapping Tensioner

MODEL	BRAND & ORIGIN	STRAP DIMENSION	STRAP QUALITY	SEAL / JOINT TYPE
H 22 – Tensioner	Transpak, Taiwan	9mm to 19mm	Composite / Poly Cord	Wire Buckle
H 25 – Tensioner	Transpak, Taiwan	12mm to 25mm	Composite / Poly Cord	Wire Buckle
H 26 – Tensioner	Transpak, Taiwan	12mm to 40mm	Composite / Poly Cord	Wire Buckle
MIP 380 – Tensioner	MIP, USA	9mm to 19mm	Composite / Poly Cord	Wire Buckle

Ratchet Tensioner for Lashing Belt – Heavy-duty challenges needs heavy-duty tools. The R 50 XXL Ratchet is made for tensioning big and strong belts. This ratchet type tensioner can be used for any kind of strapping system of 25 to 50 mm width. The design of these big tools is made to be as light weighted as possible and the wide tension angle gives you maximum tensioning strength at minimum force.

Ratchet Tensioner for Lashing Belt

MODEL	BRAND & ORIGIN	STRAP DIMENSION	STRAP QUALITY	SEAL / JOINT TYPE
R 50XXl	OEM Serv, Germany	Strap Width 25mm to 50mm	Strap Type Woven Lashing Belt	Strap Joint Lash Buckle

Manual Combination Steel Strapping Tool – the lightweight and handy combination strapping tool is ideal for strapping bars, tubes, bundles and goods with an extremely small surface. Simple to operate and totally independent of any energy source, this model has become established as the ideal helper. Lap-over seals provided with a single notch joints are used for sealing.

Manual Combination Steel Strapping Tool

MODEL	BRAND & ORIGIN	STRAP DIMENSION	STRAP QUALITY
A431	FROMM, Italy	12 or 16 or 19mm	Regular Duty & High Tensile

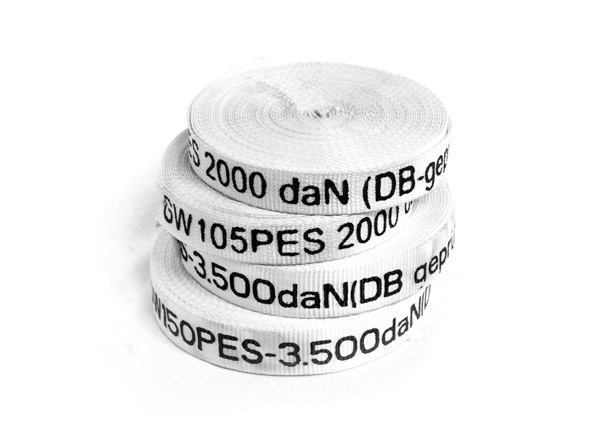

Woven Lashing Belt

Woven Lashing Belt is a one way Cargo securing strapping with high tensile strength is an economic and easy to handle.

Woven Lashing Belt

Woven Lashing Belt is a one way Cargo securing strapping with high tensile strength is an economic and easy to handle.These belts are used to tie the goods together and to fix them on suitable carriers.

Strap Type	Lash
Width	32 mm – 40 mm
Length	100 mtr – 125 mtr
Breaking Strength Linear	2000 daN – 5000 daN
Breaking Strength System	3200 daN – 8000 daN
Colour	White / Orange / other colours available on request

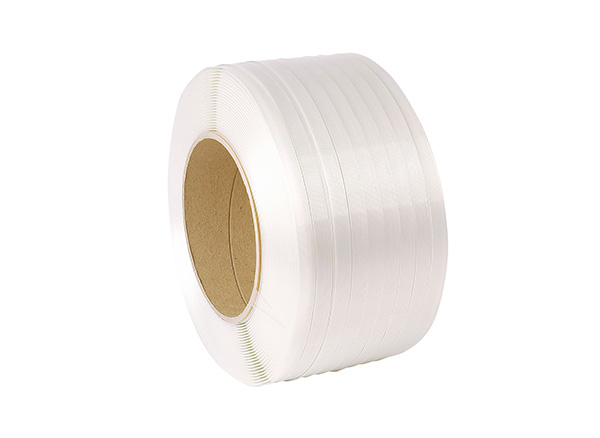

Composite / Polycord Strapping Band

Composite strapping has filaments embedded in it In the load securing industry it is often referred to as “synthetic steel”.
It is very abrasion resistant and has the highest joint efficiency when used with a buckle

Composite/Polycord Strapping Band

Composite strappinghas filaments embedded in it. In the load securing industry it is often referred to as “synthetic steel”. It is very abrasion resistant and has the highest joint efficiency when used with a buckle. Composite is made of parallel layers of single polyester threads laminated together with polypropylene. The special recipe of our polypropylene coating ensures an optimal compound with the polyester fibres and is at the same time resistant to most chemical solvents, caustics and acids. Due to its high abrasion protection it is well suited for products with rough surfaces and edges.

Strap Type	Composite
Width	13 mm – 32 mm
Length	300 mtr – 1100 mtr
Breaking Strength Linear	200 daN – 1500 daN
Breaking Strength System	320 daN – 2400 daN
Colour	White / other colours available on request

ACCESSORIES USED FOR Composite/Polycord Strapping

Strapping Buckles

Dunnage Bag

Strap Bandit

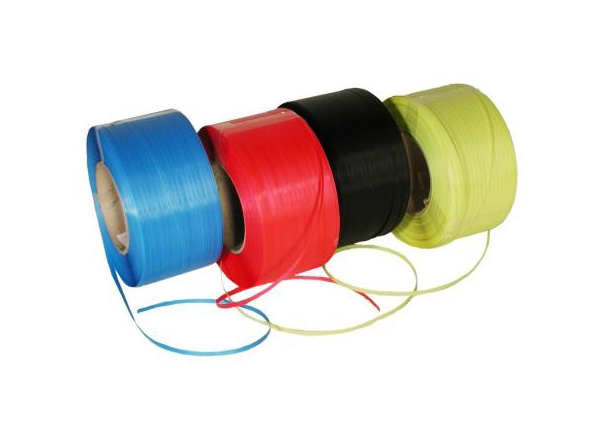

PP / Polypropylene Strapping Band

Polypropylene strap (oriented or tensilized) is an economical material designed for light to medium duty unitizing, palletizing and bundling.

PP/Polypropylene Strapping Band

Polypropylene strap (oriented or tensilized) is an economical material designed for light to medium duty unitizing, palletizing and bundling. It is available in various widths, thicknesses, and polymer variations (e.g., copolymers).Most polypropylene is embossed, some of which is also printed. This product offers higher elongation at break but tends to have irrecoverable dead stretch with constant stress.

Wdith	12.7 mm – 32 mm
Thickness	0.47 mm – 0.80 mm
Lenght(mtr/kg)	1000 mtr – 7000 mtr
Breaking Strength	42 kg to 180 kg / roll
Breaking Strength System	320 daN – 2400 daN
Quality	Semi Automatic – Fully Automatic
Colour	TP / Black / Yellow / White / other colours available on request
